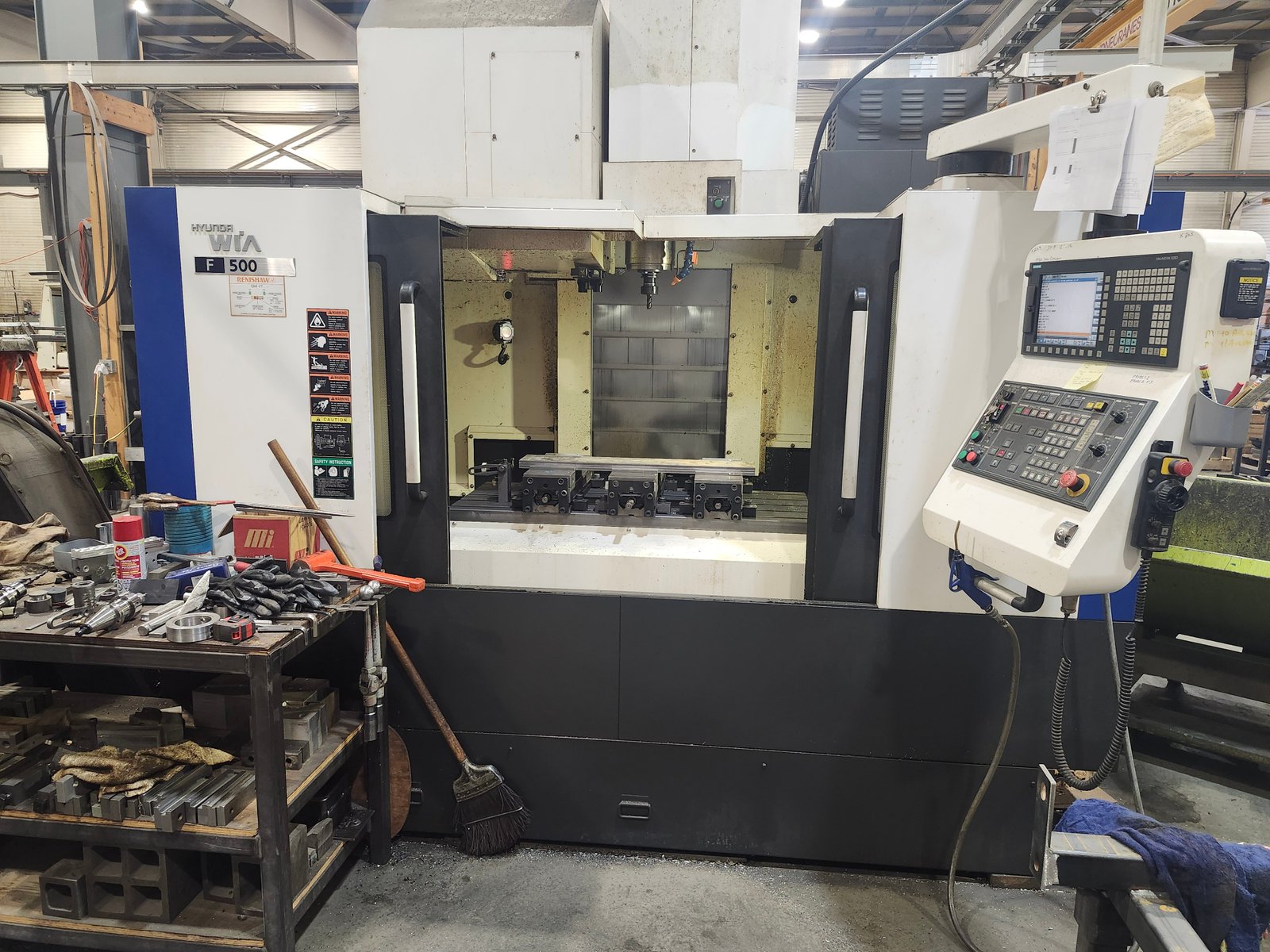

2012 Hyundai WIA F500 Vertical Machining Center WS

Investment Summary

2012 Hyundai WIA F500/40 w/ Siemens
Controller	Siemens 828D	Std
Travel X, Y, Z	41.7" × 20.1" × 25"	Std
Table	47.2" × 19.7"	Std
Max Table Weight	2,200 lbs	Std
Spindle Nose to Table	7.1" to 30.7"	Std
Spindle
Spindle Taper	CAT 40	Std
Spindle Speed	8,000 rpm	Std
Horsepower	20 HP	Std
Torque at 30 Minutes	169 ft-lbs	Std
Travel & Tooling
Rapid Traverse Z Axis	1,181 ipm	Std
Rapid Traverse X/Y Axis	1,475 ipm	Std
Tool Magazine	Dual Arm – 24 Tool	Std
Max Tool Diameter Without Adjacent Tool	3.7"	Std
Max Tool Weight	17.6 lbs	Std
Tool-to-Tool Time	2.1 sec	Std
Machine Specifications
Weight	15,432 lbs	Std
Coolant Wash Down System	Included	Std
Work Light	Included	Std
Thru Spindle Coolant	230 PSI	Std

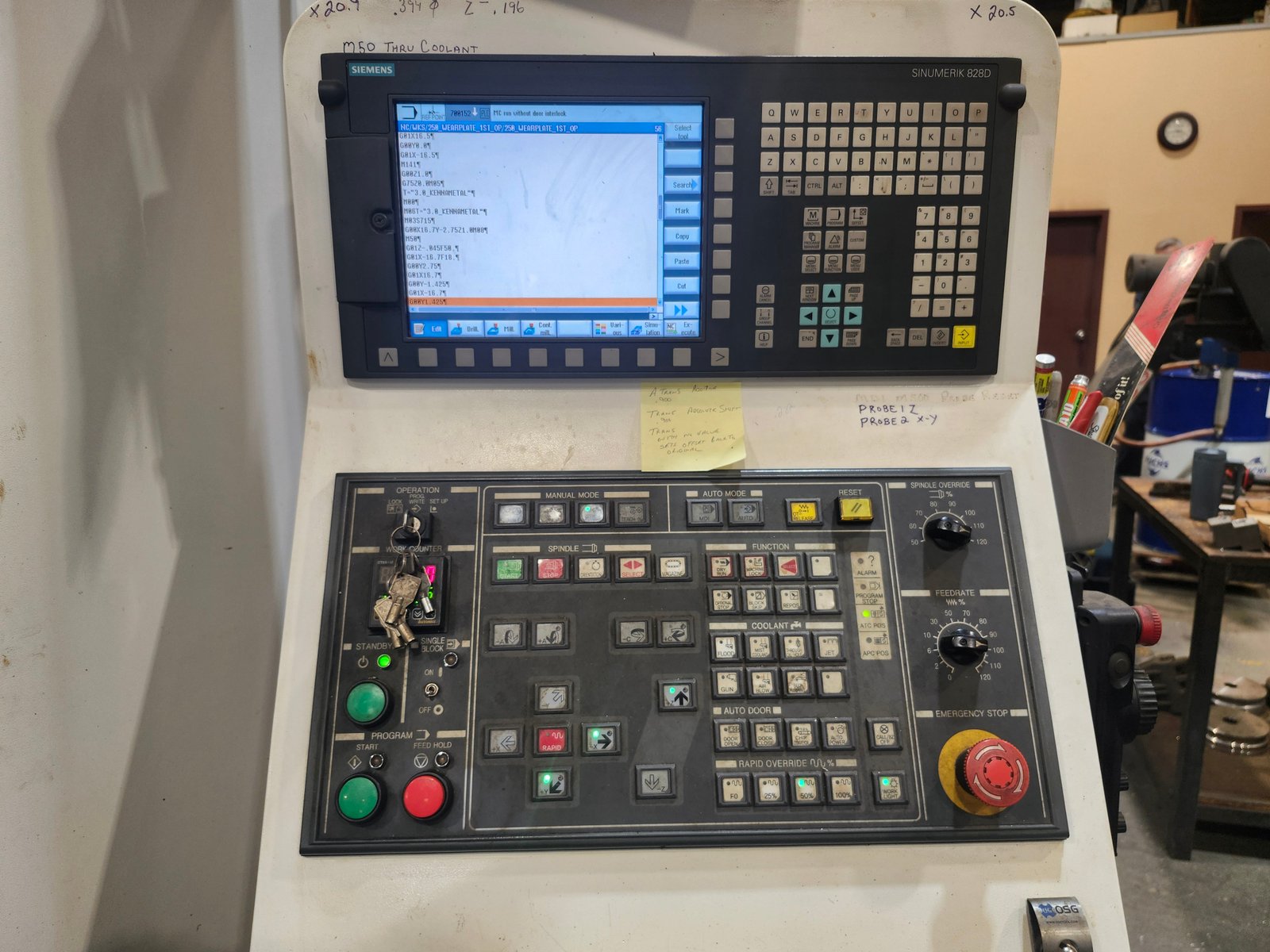

Siemens Control Features
Control	Siemens 828D	Std
Shop Turn	Included	Std
3D Simulation	Included	Std
Extended Operation	Included	Std
Optional Equipment
Chip Conveyor	Right Side	Opt
Renishaw Part Probing	Work Measuring – OMP40	Opt
Renishaw Tool Probe	TS27R	Opt
